2025-11-09 - Bas Magré

RPi 5 - Fedora with AMDGPU and Halflife 2

With an external GPU, you can build your own kernel and boot Fedora aarch64 Desktop.

Fallback to llvmpipe on Radeon drivers

Al my ATI Radeon didn’t work (I had screen output), but all did fallback to llvmpipe. So no hardware acceleration.

But the ATI Radeon R9 290 has Radeon and AMDGPU support in the kernel. If you don’t build or disable Radeon in the kernel arguments, the AMDGPU drivers will work!

Flash the Fedora KDE Desktop to SD-card

I downloaded the Fedora-KDE-Desktop-Disk-43-1.6.aarch64.raw.xz from the website.

Flashed it to a SD-card with Fedora Media Writer. (Use options Select .iso file)

After the SD-card was flashed, i opened gparted and deleted the first 2 partitions. Created a new fat32 one and added the label bootfs and added the Flag lba to it.

Next I Resized the fedora partition to the end of the disk.

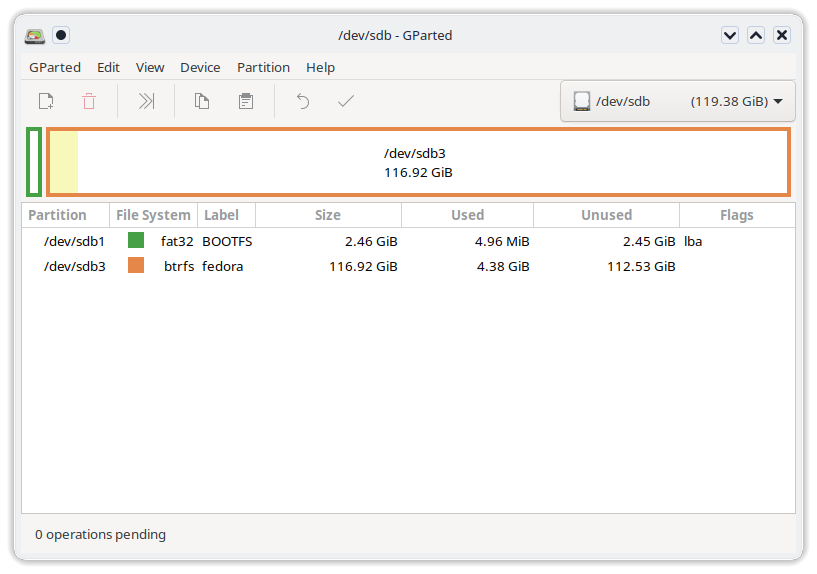

This will give something like this:


Build the kernel

Compiling will be done on an amd64 desktop. So we will cross-compile.

I have installed Fedora Linux and had to install some stuff to be able to cross compile

$ sudo dnf group install "Development Tools"
$ sudo dnf install git gcc-plugin-devel libmpc-devel gcc-c++ gcc-c++-aarch64-linux-gnu ncurses-devel libmpc-devel nano gparted

I will work from the directory /home/opvolger/demo.

Check out firmwares

First we need to clone the linux firmware

$ cd /home/opvolger/demo
$ git clone --depth 1 git://git.kernel.org/pub/scm/linux/kernel/git/firmware/linux-firmware.git

We need this, so we can add firmware directly in the kernel.

Build kernel

Now we can clone the raspberry pi kernel.

# checkout kernel code
$ cd /home/opvolger/demo
$ git clone --branch rpi-6.12.y --depth 1 https://github.com/raspberrypi/linux.git raspberrypi-6.12-y
$ cd raspberrypi-6.12-y

# we want to cross-compile the kernel
$ export ARCH=arm64
$ export CROSS_COMPILE=aarch64-linux-gnu-

# make a default .config for the pi5 chip.
$ make bcm2712_defconfig
# we need to make (and add stuff) changes
$ make menuconfig

Select the next kernel options

Device Drivers
└─>Generic Driver Options
    └─>Firmware loader
      () Build named firmware blobs into the kernel binary
      (../linux-firmware) Firmware blobs root directory

In the Build named firmware blobs into the kernel binary, you will need to add your blobs of your AMD video card. In my case it was the hawaii (R2 290) blobs. For example the 200-series you can find you “blob-names: on wikipedia

If you do not have the correct blobs, you can see it with the commands following after booting:

$ journalctl -b | grep radeon
$ journalctl -b | grep amdgpu
$ journalctl -b | grep firmware

Than you can change it and rebuild the kernel.

Change Firmware blobs root directory to ../linux-firmware

amdgpu/hawaii_k_smc.bin amdgpu/hawaii_smc.bin amdgpu/hawaii_uvd.bin amdgpu/hawaii_vce.bin amdgpu/hawaii_sdma.bin amdgpu/hawaii_sdma1.bin amdgpu/hawaii_pfp.bin amdgpu/hawaii_me.bin amdgpu/hawaii_ce.bin amdgpu/hawaii_rlc.bin amdgpu/hawaii_mec.bin amdgpu/hawaii_mc.bin radeon/hawaii_pfp.bin radeon/hawaii_me.bin radeon/hawaii_ce.bin radeon/hawaii_mec.bin radeon/hawaii_mc.bin radeon/hawaii_rlc.bin radeon/hawaii_sdma.bin radeon/hawaii_smc.bin radeon/hawaii_k_smc.bin radeon/HAWAII_pfp.bin radeon/HAWAII_me.bin radeon/HAWAII_ce.bin radeon/HAWAII_mec.bin radeon/HAWAII_mc.bin radeon/HAWAII_mc2.bin radeon/HAWAII_rlc.bin radeon/HAWAII_sdma.bin radeon/HAWAII_smc.bin

Add AMDGPU/ATIGPU support

Linux Kernel Configuration
└─>Device Drivers
  └─>Graphics support
    └─>Direct Rendering Manager (XFree86 4.1.0 and higher DRI support)
      <*> ATI Redeon
      <*> AMD GPU
      [*]   Enable amdgpu support for SI parts (NEW)
      [*]   Enable amdgpu support for CIK parts (NEW)

Change Direct Rendering Manager (XFree86 4.1.0 and higher DRI support) from M (Modules) to * (with in the kernel) (with the space bar).

I disabled all DRM support .... that where selected. and selected ATI Redeon, AMD GPU and enabled SI en CIK support.

Now we want sound on the HDMI monitor, so we add support for that.

Device Drivers
└─>Sound card support
  └─>Advanced Linux Sound Architecture
    └─>HD-Audio
        <*> HD Audio PCI
        <*> Build HDMI/DisplayPort HD-audio codec support

Change Advanced Linux Sound Architecture from M (Modules) to * (with in the kernel) (with the space bar).

Select * for HD Audio PCI and now you can select * by Build HDMI/DisplayPort HD-audio codec support.

Now add and change the file systems we will support

File systems
└─><*> Btrfs filesystem support
   [*] Btrfs POSIX Access Control Lists
   [*] Btrfs debugging support
   [*] Btrfs assert support
   [*] Btrfs with the ref verify tool compiled in

I changed all the M (Modules) to * (with in the kernel) (if possible) (with the space bar) and added all the Btrfs options. No idea if i need them all….

Change M to * from ZRAM and enable all the sub Compressed RAM block device support:

Device Drivers
└─>Block devices
    └─><*>Compressed RAM block device support
       [*]     lz4 compression support
        [*]     lz4hc compression support
        [*]     zstd compression support
        [*]     deflate compression support
        [*]     842 compression support
        [*]     lzo and lzo-rle compression support
                Default zram compressor (zstd)  --->
        [*]     Write back incompressible or idle page to backing device
        [*]     Track access time of zram entries
        [*]     Track zRam block status
        [*]     Enable multiple compression streams

We now need to set the page size from 16 to 4 in the kernel

Kernel Features
└─>Page size (16KB)

Now you need to select 4KB (space bar).

We can now Exit and save the changes!

You can disable more options (Like Amateur Radio support, Industrial I/O support, USB sound devices ,ALSA for SoC audio support, Broadcom VideoCore support, Touchscreens, Media USB Adapters, Radio Adapters and Support for small TFT LCD display modules), but this is optional. The kernel will compile faster.

Before we can build, we need to add a kernel patch. We need to change code so the pi can work with the AMDGPU.

Create a file drm.patch in /home/opvolger/demo/raspberrypi-6.12-y/. I found this patch here.

From c1d421d7c501c77e8c04bdfa141a55e639822c03 Mon Sep 17 00:00:00 2001
From: Yang Bo <bo.yang@smail.nju.edu.cn>
Date: Wed, 28 May 2025 11:18:19 +0800
Subject: [PATCH] Add amdgpu support for arm SoC

Change-Id: Ic95c8514271d246dd668631810e8dee210f7f1b4
Signed-off-by: Yanghaku <bo.yang@smail.nju.edu.cn>
---
 drivers/gpu/drm/ttm/ttm_bo_util.c | 14 +-------------
 drivers/gpu/drm/ttm/ttm_module.c  |  5 +++++
 2 files changed, 6 insertions(+), 13 deletions(-)

diff --git a/drivers/gpu/drm/ttm/ttm_bo_util.c b/drivers/gpu/drm/ttm/ttm_bo_util.c
index 0b3f4267130c..e0e55cb9edd2 100644
--- a/drivers/gpu/drm/ttm/ttm_bo_util.c
+++ b/drivers/gpu/drm/ttm/ttm_bo_util.c
@@ -343,8 +343,6 @@ static int ttm_bo_kmap_ttm(struct ttm_buffer_object *bo,
        .no_wait_gpu = false
    };
    struct ttm_tt *ttm = bo->ttm;
-   struct ttm_resource_manager *man =
-           ttm_manager_type(bo->bdev, bo->resource->mem_type);
    pgprot_t prot;
    int ret;

@@ -354,17 +352,7 @@ static int ttm_bo_kmap_ttm(struct ttm_buffer_object *bo,
    if (ret)
        return ret;

-   if (num_pages == 1 && ttm->caching == ttm_cached &&
-       !(man->use_tt && (ttm->page_flags & TTM_TT_FLAG_DECRYPTED))) {
-       /*
-        * We're mapping a single page, and the desired
-        * page protection is consistent with the bo.
-        */
-
-       map->bo_kmap_type = ttm_bo_map_kmap;
-       map->page = ttm->pages[start_page];
-       map->virtual = kmap(map->page);
-   } else {
+   {
        /*
         * We need to use vmap to get the desired page protection
         * or to make the buffer object look contiguous.
diff --git a/drivers/gpu/drm/ttm/ttm_module.c b/drivers/gpu/drm/ttm/ttm_module.c
index b3fffe7b5062..9f3e425626b5 100644
--- a/drivers/gpu/drm/ttm/ttm_module.c
+++ b/drivers/gpu/drm/ttm/ttm_module.c
@@ -63,7 +63,12 @@ pgprot_t ttm_prot_from_caching(enum ttm_caching caching, pgprot_t tmp)
 {
    /* Cached mappings need no adjustment */
    if (caching == ttm_cached)
+   {
+#ifdef CONFIG_ARM64
+       return pgprot_dmacoherent(tmp);
+#endif
        return tmp;
+   }

 #if defined(__i386__) || defined(__x86_64__)
    if (caching == ttm_write_combined)
--
2.49.0
# we first apply the patch
$ git apply
# now we build the kernel. i have 16 cores, so i will build with -j 16
$ make -j 16

Copy to SD-card

I mounted the SD-cart to /run/media/opvolger/BOOTFS/ and /run/media/opvolger/fedora/. with dolphin (auto mount).

Now create the file /run/media/opvolger/BOOTFS/config.txt with nano or something else.

Here you can set some pi-setting for boot time

# no idea if they are all needed

# Automatically load overlays for detected DSI displays
display_auto_detect=1

# Automatically load initramfs files, if found (we don't)
auto_initramfs=1

# Run in 64-bit mode
arm_64bit=1

# Disable compensation for displays with overscan
disable_overscan=1

# Run as fast as firmware / board allows
arm_boost=1
# The name of the kernel
kernel=Image
# enable pci-express
dtparam=pciex1

# enable serial (so you can see what is going wrong over serial)
enable_serial=1
enable_uart=1

First check you PARTUUID of your fedora rootfs. You can do this with with the command blkid

$ blkid
................
................
................
................
/dev/sdb1: LABEL_FATBOOT="BOOTFS" LABEL="BOOTFS" UUID="F830-72A5" BLOCK_SIZE="512" TYPE="vfat" PARTUUID="a5e8e31d-01"
/dev/zram0: LABEL="zram0" UUID="d3cb02f4-a70f-4f48-92ce-1bb0474c14fc" TYPE="swap"
/dev/sdb3: LABEL="fedora" UUID="fe1a5809-2964-4049-804b-c6308eea9706" UUID_SUB="8695f5be-13c2-4f38-9ec4-ca593ac9665d" BLOCK_SIZE="4096" TYPE="btrfs" PARTUUID="a5e8e31d-03"

Now create the file /run/media/opvolger/BOOTFS/cmdline.txt with nano or something else.

This will add kernel argument on boot time. We enable serial output, set the correct settings for the root-fs of fedora, disable radeon drivers and enable amdgpu drivers.

Here we can use a5e8e31d-03 for the PARTUUID. don’t forget to update. The boot process will stop. (it will not find a root partition).

console=serial0,115200 console=tty1 root=PARTUUID=a5e8e31d-03 ro rootflags=subvol=root rhgb rootflags=subvol=root fsck.repair=yes rootwait plymouth.ignore-serial-consoles radeon.si_support=0 radeon.cik_support=0 amdgpu.si_support=1 amdgpu.cik_support=1

Now we change the fstab file from the fedora root partition. We have deleted the boot partition, so we must delete it from the mount on startup.

sudo nano /run/media/opvolger/fedora/root/etc/fstab

Add a # for the /boot and /boot/efi mounts. On a newer version the UUID’s can be different, keep them, only add the # on the lines where /boot annd /boot/efi are located.

UUID=fe1a5809-2964-4049-804b-c6308eea9706 / btrfs x-systemd.growfs,compress=zstd:1,defaults,subvol=root 0 1
#UUID=c17a86dd-8323-4e0d-9595-3ba0107f6345 /boot ext4 defaults 0 0
UUID=fe1a5809-2964-4049-804b-c6308eea9706 /home btrfs x-systemd.growfs,compress=zstd:1,subvol=home 0 0
UUID=fe1a5809-2964-4049-804b-c6308eea9706 /var btrfs x-systemd.growfs,compress=zstd:1,subvol=var 0 0
#UUID=9AB8-3989 /boot/efi vfat defaults,umask=0077,shortname=winnt 0 0

Now we only have to copy the kernel files!

$ cd /home/opvolger/demo/raspberrypi-6.12-y
# copy kernel and device tree to boot partition SD-card
$ cp arch/arm64/boot/Image /run/media/opvolger/BOOTFS/
$ cp arch/arm64/boot/dts/broadcom/bcm2712-rpi-5-b.dtb /run/media/opvolger/BOOTFS/
# copy overlay needed for pi boot process
$ mkdir /run/media/opvolger/BOOTFS/overlays
$ cp /home/opvolger/demo/raspberrypi-6.12-y/arch/arm64/boot/dts/overlays/* /run/media/opvolger/BOOTFS/overlays

# now make the modules install them on the SD-card root partition (fedora)
$ sudo ARCH=arm64 make modules_install INSTALL_MOD_PATH=/run/media/opvolger/fedora/

Boot from SD-Card

Umount the root and boot partitions from the SD-card.

If everything works great, you will see a setup and can create a user.

Install Stream

We need to install fex (intel/amd64 emulator), it needs it own root-fs. We will make one for him.

$ sudo dnf install fex-emu fex-emu-filesystem fex-emu-rootfs-fedora fex-emu-thunks fex-emu-utils erofs-fuse  erofs-utils  squashfuse  squashfuse-libs patchelf

Now run FEXRootFSFetcher to create a intel/amd64 root-fs. I had the most success with Ubuntu 24.04.

$ FEXRootFSFetcher
RootFS not found. Do you want to try and download one?
Response {y,yes,1} or {n,no,0}
$ y
RootFS list selection
Options:
        0: Cancel
        1: Fedora 40 (EroFS)
        2: Fedora 40 (SquashFS)
        3: Fedora 38 (EroFS)
        4: Fedora 38 (SquashFS)
        5: ArchLinux (EroFS)
        6: ArchLinux (SquashFS)
        7: Ubuntu 24.04 (EroFS)
        8: Ubuntu 24.04 (SquashFS)
        9: Ubuntu 23.10 (EroFS)
        10: Ubuntu 23.10 (SquashFS)
        11: Ubuntu 23.04 (EroFS)
        12: Ubuntu 23.04 (SquashFS)
        13: Ubuntu 22.10 (EroFS)
        14: Ubuntu 22.10 (SquashFS)
        15: Ubuntu 22.04 (EroFS)
        16: Ubuntu 22.04 (SquashFS)
        17: Ubuntu 20.04 (EroFS)
        18: Ubuntu 20.04 (SquashFS)

Response {1-18} or 0 to cancel
$ 7
Selected Rootfs: Ubuntu 24.04 (EroFS)
        URL: https://rootfs.fex-emu.gg/Ubuntu_24_04/2025-03-04/Ubuntu_24_04.ero
Are you sure that you want to download this image
Response {y,yes,1} or {n,no,0}
$ y
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 1393M  100 1393M    0     0  34.0M      0  0:00:40  0:00:40 --:--:-- 33.4M
Do you wish to extract the erofs file or use it as-is?
Options:
        0: Cancel
        1: Extract
        2: As-Is

Response {1-2} or 0 to cancel
$ 1
Extracting Erofs. This might take a few minutes.
Do you wish to set this RootFS as default?
Response {y,yes,1} or {n,no,0}
$ y
Ubuntu_24_04 set as default RootFS

We now have a root-fs for intel/amd64 (games). But we need to install steam and dependacies, so we can game!

# here is the intel/amd64 root-fs located
$ cd ~/.fex-emu/RootFS/Ubuntu_24_04/
# get into the root-fs (so we can install steam on the root-fs)
$ python chroot.py chroot
INFO:root:Creating FEX paths
INFO:root:Copying FEXInterpreter depends
INFO:root:Patching FEX dependencies
INFO:root:Mounting rootfs paths
INFO:root:Setting up FEXServer config
INFO:root:Chrooting in to /home/opvolger/.fex-emu/RootFS/Ubuntu_24_04
root@raspberrypi:/# apt update
.....
.....
.....
.....
Get:73 http://archive.ubuntu.com/ubuntu noble-backports/main amd64 Components [7144 B]
Get:74 http://archive.ubuntu.com/ubuntu noble-backports/universe i386 Packages [15.8 kB]
Get:75 http://archive.ubuntu.com/ubuntu noble-backports/universe amd64 Packages [28.9 kB]
Get:76 http://archive.ubuntu.com/ubuntu noble-backports/universe Translation-en [17.5 kB]
Get:77 http://archive.ubuntu.com/ubuntu noble-backports/universe amd64 Components [11.0 kB]
Get:78 http://archive.ubuntu.com/ubuntu noble-backports/restricted amd64 Components [212 B]
Get:79 http://archive.ubuntu.com/ubuntu noble-backports/multiverse amd64 Components [212 B]
Fetched 76.5 MB in 20s (3846 kB/s)
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
189 packages can be upgraded. Run 'apt list --upgradable' to see them.
root@raspberrypi:/# apt install steam
.....
.....
.....
.....
Recommended packages:
  luit
The following NEW packages will be installed:
  bubblewrap cpp cpp-13 cpp-13-x86-64-linux-gnu cpp-x86-64-linux-gnu file fuse3 gcc-13-base libauthen-sasl-perl
  libclone-perl libdata-dump-perl libencode-locale-perl libfile-basedir-perl libfile-desktopentry-perl
  libfile-listing-perl libfile-mimeinfo-perl libfont-afm-perl libfuse3-3 libhtml-form-perl libhtml-format-perl
  libhtml-parser-perl libhtml-tagset-perl libhtml-tree-perl libhttp-cookies-perl libhttp-daemon-perl
  libhttp-date-perl libhttp-message-perl libhttp-negotiate-perl libio-html-perl libio-socket-ssl-perl
  libio-stringy-perl libipc-system-simple-perl libisl23 liblwp-mediatypes-perl liblwp-protocol-https-perl
  libmagic-mgc libmagic1t64 libmailtools-perl libmpc3 libmpfr6 libnet-dbus-perl libnet-http-perl libnet-smtp-ssl-perl
  libnet-ssleay-perl libnm0 libnm0:i386 libpipewire-0.3-0t64 libpipewire-0.3-common libspa-0.2-modules
  libtext-iconv-perl libtie-ixhash-perl libtimedate-perl libtry-tiny-perl liburi-perl libva-glx2 libva-glx2:i386
  libwww-perl libwww-robotrules-perl libx11-protocol-perl libxkbfile1 libxml-parser-perl libxml-twig-perl
  libxml-xpathengine-perl libxmuu1 libxxf86dga1 perl-openssl-defaults steam:i386 steam-devices steam-installer
  steam-libs steam-libs:i386 steam-libs-i386:i386 x11-utils x11-xserver-utils xdg-desktop-portal
  xdg-desktop-portal-gtk xdg-utils
0 upgraded, 77 newly installed, 0 to remove and 189 not upgraded.
Need to get 17.8 MB of archives.
After this operation, 63.1 MB of additional disk space will be used.
Do you want to continue? [Y/n] Y
.....
.....
.....
.....
Setting up libmailtools-perl (2.21-2) ...
Setting up libhttp-daemon-perl (6.16-1) ...
Setting up cpp (4:13.2.0-7ubuntu1) ...
Setting up xdg-desktop-portal-gtk (1.15.1-1build2) ...
Setting up x11-xserver-utils (7.7+10build2) ...
Setting up liblwp-protocol-https-perl (6.13-1) ...
Setting up libwww-perl (6.76-1) ...
Setting up libxml-parser-perl (2.47-1build3) ...
Setting up libxml-twig-perl (1:3.52-2) ...
Setting up libnet-dbus-perl (1.2.0-2build3) ...
Processing triggers for hicolor-icon-theme (0.17-2) ...
Processing triggers for libc-bin (2.39-0ubuntu8.4) ...
root@raspberrypi:/#
exit
INFO:root:Returning from chroot
INFO:root:Deleting FEX paths
INFO:root:Unmount rootfs paths
[sudo] password for opvolger:
INFO:root:Fixing any potential permission issues

We now have installed steam on the root-fs on the emulator. Now we need to install steam on the system. This can be done with the script from box64

$ cd ~/
$ wget https://raw.githubusercontent.com/ptitSeb/box64/refs/heads/main/install_steam.sh
$ chmod +x install_steam.sh
$ ./install_steam.sh
# run steam!
$ FEXBatch
FEXBash-opvolger@raspberrypi:~> steam

This can give an error of missing packages… just hit Enter and continue.

This script will install Steam in your home dir. After the setup is finished you can start Steam just with the command FEXBatch and than steam. ignore all the errors you see in your screen…. Steam client will start!

Download Half Life 2. Start your game!
